- The Label Shrink Tunnel Adopts Hot Air Circulating System, Which Can be Used to Shrink Bottles, Jars, Cups Etc…
- It Can Shrink Label on The Body as Well as The Cap of The Bottles. The Strength and Durability of This Model is Its Greatest Feature a Straightforward.
- Easy Manual Operation is Used. Operator Training Should Require Less Than One Work Shift
Features
- Thick shaft roller conveyor system
- Optional rotational structure for special shrink result purpose
- Optional sectional type air flow patterning for different packaging requests
- Locking casters
- Levelling legs
Scope
- The label shrink tunnel adopts hot air circulating system, which can be used to shrink bottles, jars, cups etc.
Specifications
| Model | SM 1230 |
|---|---|
| Machine Dimension LxWxH (mm) | 1804 x 600 x 1560 |
| Tunnel Dimension LxWxH (mm) | 1500 x 120 x 300 |
| Max Packaging Size Dia x H (mm) | 100 x 280 |
| Packaging Speed (pcs/h) | 8000 - 12000 |
| Net Weight (Kg) | 210 |
| Power (kw) | 15 |
| Power Supply | 3PH 220V/380V 50/60hz |
| Applicable Film | POF/PVC/PE |
There are Many Ranges of Model and Application in Shrink Tunnels for Labels. Please Do Contact Us for More Product

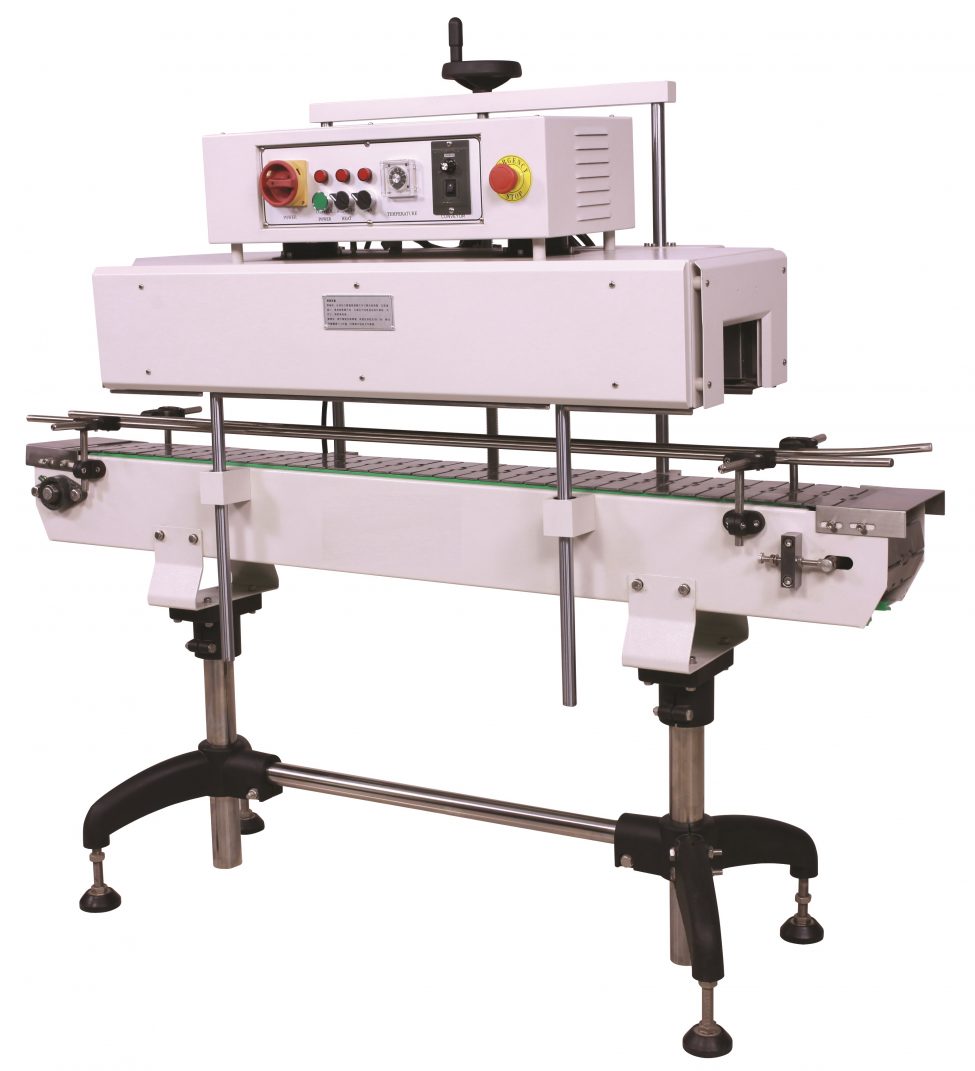

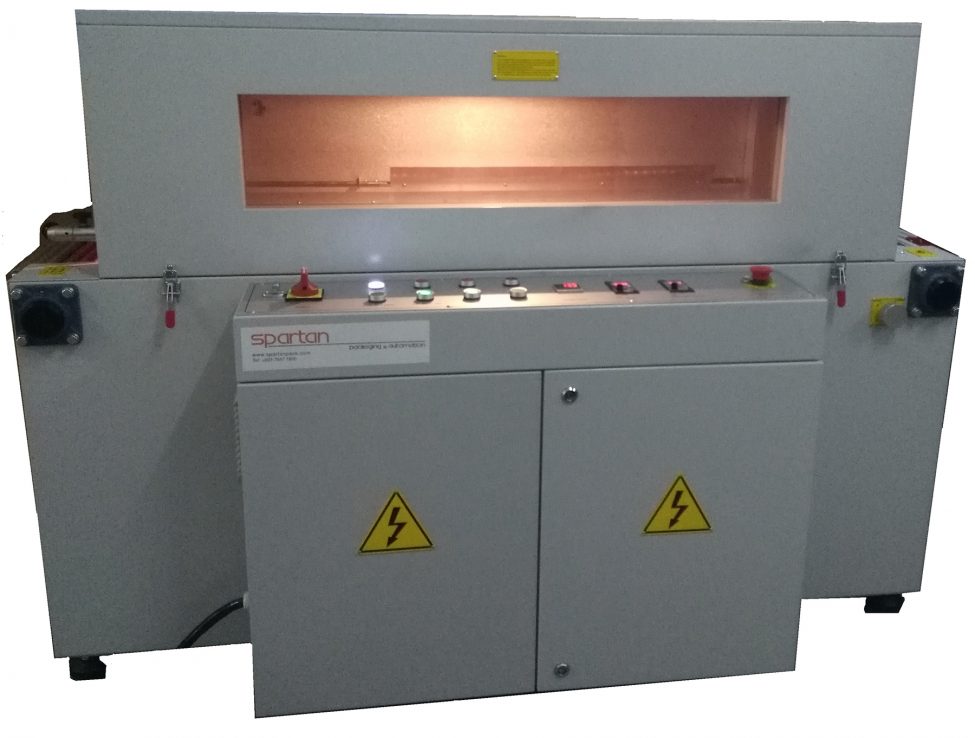

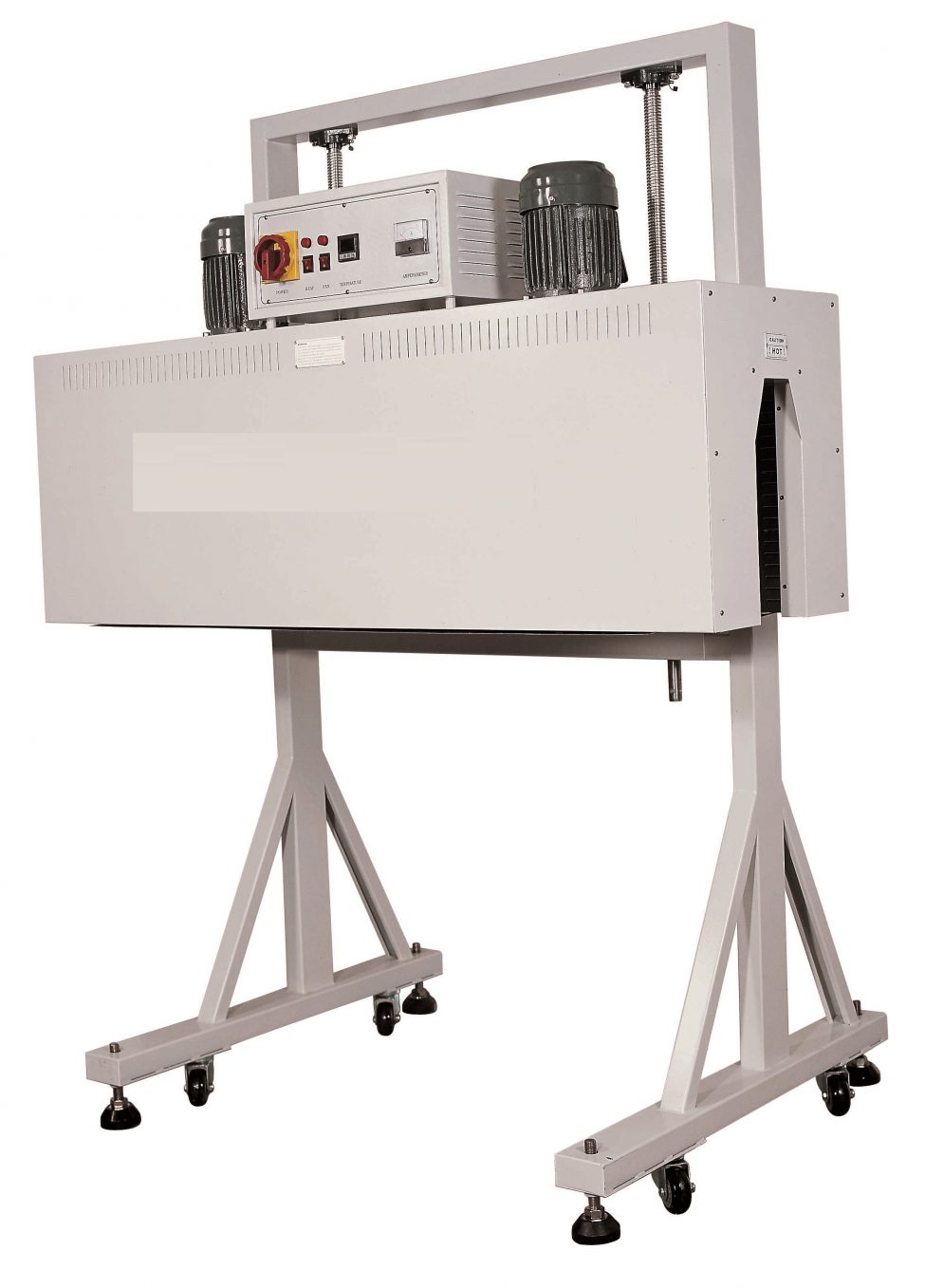

Product Images
